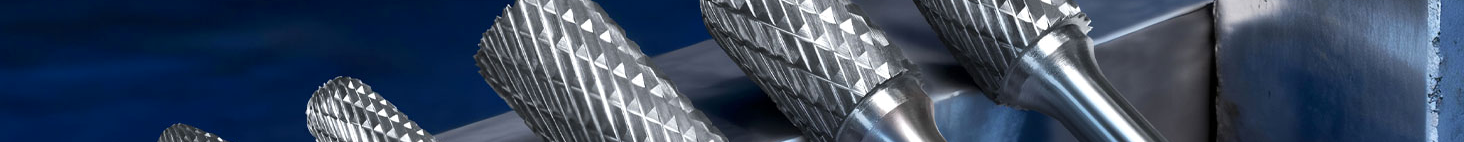

GENERAL CARBIDE ROTARY FILE
SHAPE: SE
Suitable for processing various metals and non-metals with hardness below HRC70.
It has high production efficiency, good processing quality, long service life, simple and convenient operation, no dust pollution, and improves the working environment.
|
Shank-mm
|
Dimensions-All in-mm
|
Type/Solid/Brazed
|
Part Numbers
|
|||||
|
|
D1 |
D2 |
L1 |
L2 |
|
Cut 2 |
Cut 6 |
Cut 3 |
|
3mm |
3.0 |
3.0 |
38.0 |
6.0 |
- Solid |
-GE30306-2 |
-GE30306-6 |
GE30306-3 |
|
3mm |
5.0 |
3.0 |
38.0 |
8.0 |
- Solid |
-GE30508-2 |
-GE30508-6 |
- |
|
3mm |
6.3 |
3.0 |
37.0 |
9.5 |
Brazed |
-GE30610-2 |
-GE30610-6 |
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
||||||||
|
Shank-mm
|
Dimensions-All in-mm
|
Type/Solid/Brazed
|
Part Numbers
|
|||||
|
|
D1 |
D2 |
L1 |
L2 |
|
Cut 2 |
Cut 6 |
Cut 3 |
|
6mm |
6.0 |
6.0 |
50 |
10.0 |
- Solid |
GE60610-2 |
GE60610-6 |
- |
|
6mm |
8.0 |
6.0 |
60 |
15.0 |
Brazed |
GE60815-2 |
GE60815-6 |
GE60815-3 |
|
6mm |
9.6 |
6.0 |
60 |
16.0 |
Brazed |
GE61015-2 |
GE61015-6 |
- |
|
6mm |
12.7 |
6.0 |
67 |
22.0 |
Brazed |
GE61220-2 |
GE61220-6 |
- |
|
6mm |
16.0 |
6.0 |
70 |
25.0 |
Brazed |
GE61525-2 |
GE61525-6 |
GE61525-3 |
|
6mm |
19.0 |
6.0 |
70 |
25.0 |
Brazed |
GE62025-2 |
GE62025-6 |
GE62025-3 |
|
|
||||||||
|
|
||||||||
|
Shank-mm
|
Dimensions-All in-mm
|
Type/Solid/Brazed
|
Part Numbers
|
|||||
|
|
D1 |
D2 |
L1 |
L2 |
|
Cut 2 |
Cut 6 |
Cut 3 |
|
|
12.7 |
8.0 |
70 |
25.0 |
Brazed |
GC81225-2 |
GC81225-6 |
GC81225-3 |
|
|
16.0 |
8.0 |
70 |
25.0 |
Brazed |
GC81525-2 |
GC81525-6 |
GC81525-3 |
|
|
19.0 |
8.0 |
70 |
25.0 |
Brazed |
GC82025-2 |
GC82025-6 |
GC82025-3 |
|
|
25.0 |
8.0 |
70 |
25.0 |
Brazed |
GC82525-2 |
GC82525-6 |
- |
|
|
||||||||
Recommended Operating Speeds
BMRANGE SPEEDGUIDE
|
- |
Material Groups |
HB* |
B.S |
EN |
DIN |
|
Steel- |
Magnetic Soft |
<120 |
230m07, 050A12 |
EN1, EN2 Lead loy |
RFe60 |
|
Structural case carburizing |
<200 |
060A35,080M40,4360-50B 4360-50B |
EN3A, 4 , 6 , 7, 8, 32 |
St37-2,16MnCr5,St50-2 |
|
|
Cast Iron- |
Lameller graphite |
<150 |
Grade 150, Grade 400 |
Grey cast iron soft |
GG10, GG40 |
|
Nodular graphite, malleable |
<200 |
420/12, P440/7, 700/2, 30g/72 |
S.G. iron Mehanite |
GGG40, GGG70, GGTS45 |
|
|
Brass- |
Unalloyed |
<100 |
C101 |
Commercially Pure |
E-Cu57, SE-Cu |
|
Copper- |
β-Brass, Bronze |
<200 |
CZ120, CZ109, PB104 |
2.1030, 2.1080 |
CuZn39Pb2, CuZn40 |
|
Bronze- |
γ-Brass |
<200 |
CZ108, CZ106 |
|
CuZn37, CuZn28 |
|
Head Diameter |
1/4" |
5/16" |
3/8" |
1/2" |
----------------- |
|
Max. RPM |
65000 |
60000 |
55000 |
35000 |
---- |
|
Steel |
35,000-45,000 |
30,000-40,000 |
22,500-35,000 |
20,500-30,000 |
---- |
|
Cast Iron |
22,500-45,000 |
20,000-40,000 |
15,000-35,000 |
11,000-30,000 |
---- |
|
Brass, Copper, Bronze |
22,500-45,000 |
20,000-40,000 |
15,000-35,000 |
11,000-30,000 |
---- |
